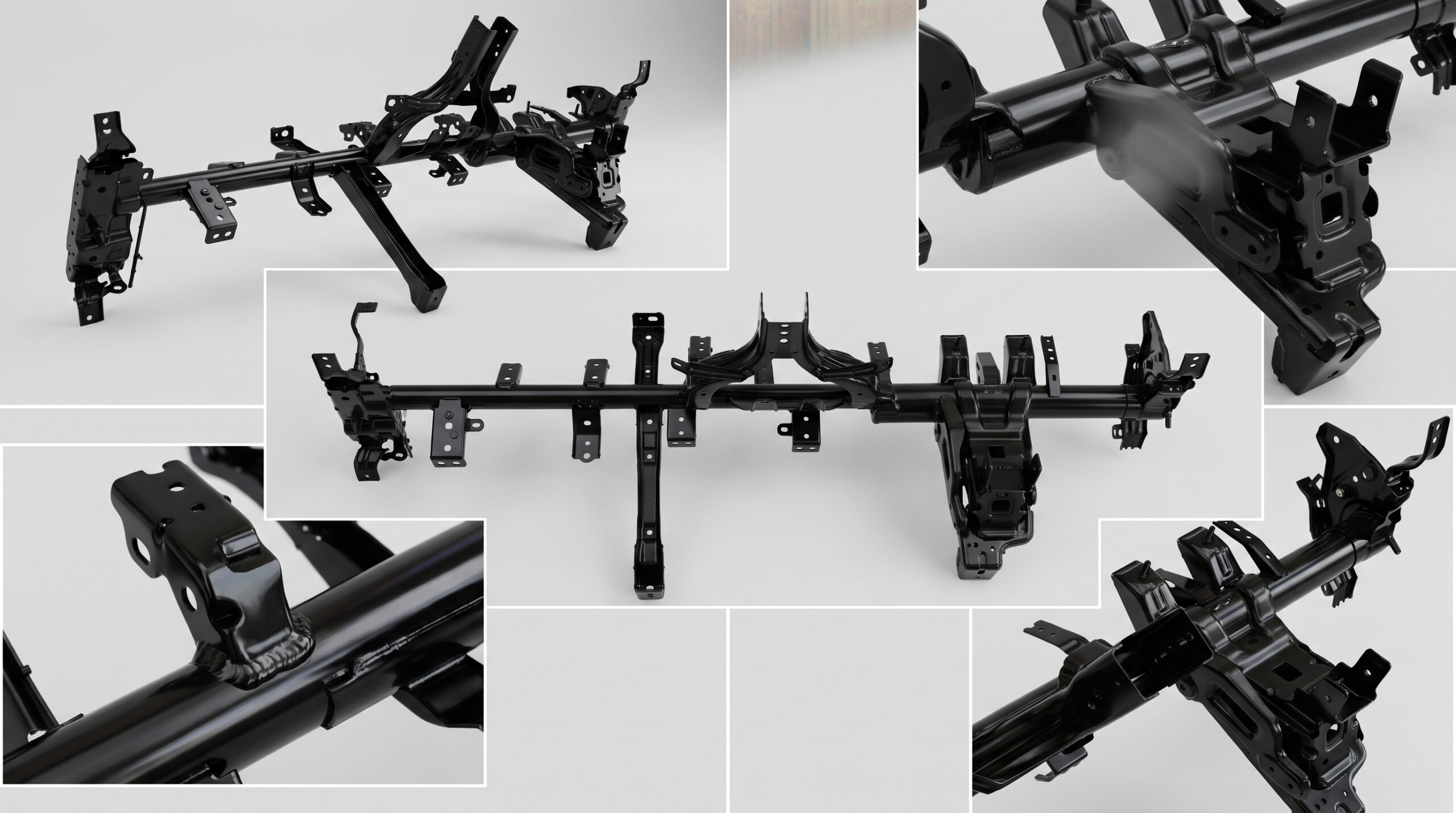

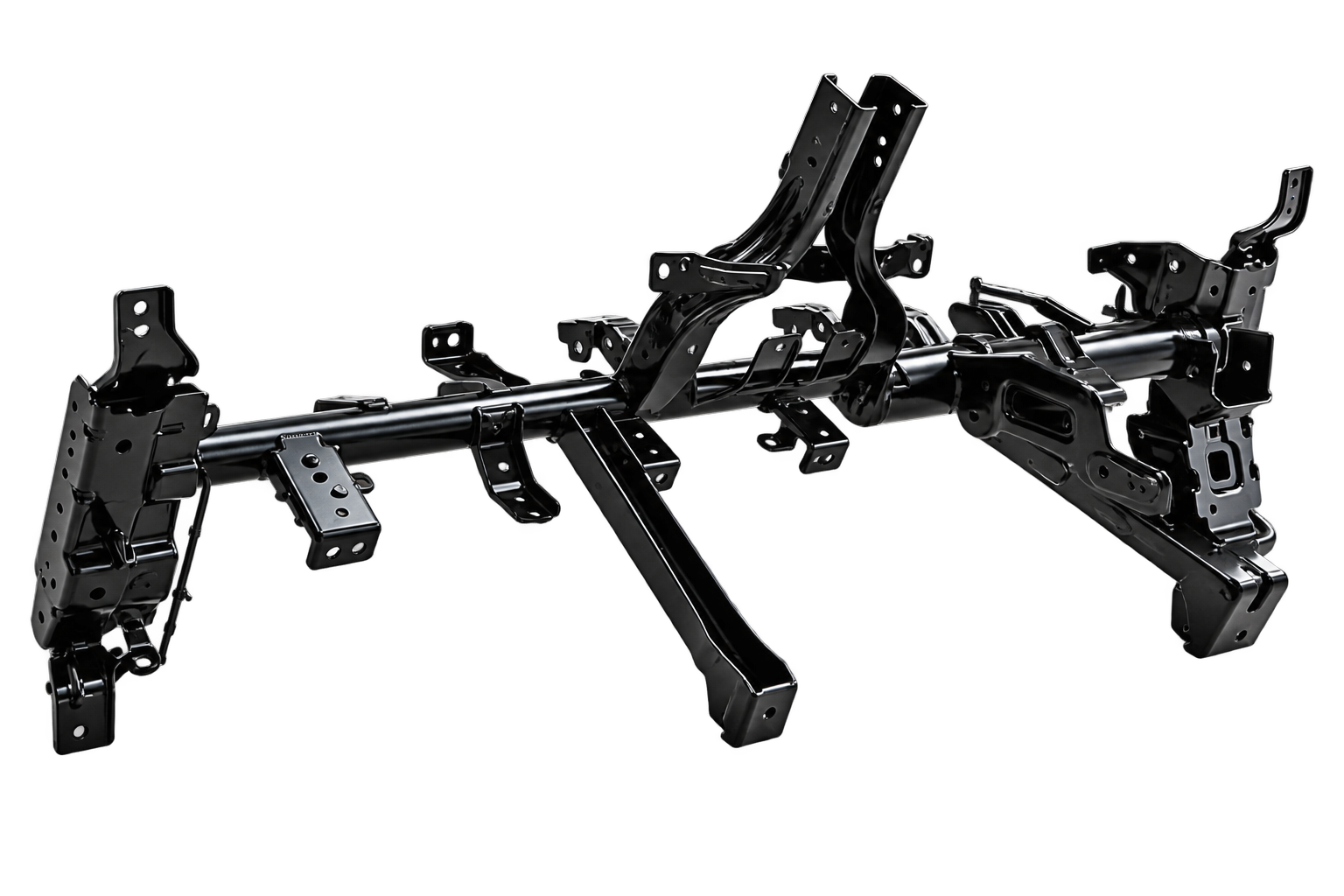

Cross Car Beam. Reinforced IP Sub-Assembly · ICE · HEV · EV
Engineered from STKM-11A and SPC590 high-strength steel, robot CO2 welded across 6 models and 3 vehicle platforms — with 100% checking fixture inspection before dispatch.
Engineered from STKM-11A and SPC590 high-strength steel, robot CO2 welded across 6 models and 3 vehicle platforms — with 100% checking fixture inspection before dispatch.
Structural Precision for Every Platform
Our Cross Car Beam product range delivers reinforced instrument panel sub-assemblies for automotive applications — a critical structural member spanning the full width of the vehicle, housing the instrument cluster, HVAC, airbag systems and steering column.
"Robot CO2 welded from STKM-11A and SPC590 high-strength steel, engineered across 6 models covering ICE, HEV and EV platforms."
Robot CO2 Welding
Fully automated welding delivers consistent weld quality and high mechanical strength across all models.
Multi-Platform Coverage
Engineered variants for ICE, HEV and EV vehicle types — from simple direct designs to complex dual-diameter assemblies.
100% Final Inspection
Every finished beam passes through a dedicated checking fixture — zero defects leave the production line.
Engineering Grade Materials
Two high-strength steel grades — selected for their complementary properties, delivering both structural rigidity and excellent formability across all assembly variants.
| Standard | JIS G3445 |
| Carbon Content | < 0.12% |
| Tensile Strength | 290 – 390 MPa |
| Minimum Tensile | 590 MPa |
| Type | Cold-Rolled HSLA Sheet |
| Key Properties | Ultimate Tensile Strength, Formability |
Robot CO2 Welding — The Assembly Standard
CO2 (MAG) welding performed by robotic systems delivers precision, repeatability and speed across all assembly models. Automated execution eliminates human variation and ensures every weld joint meets the dimensional and mechanical requirements of the design specification.
Three Platform Variants
Each vehicle powertrain type demands a unique instrument panel beam configuration — from the streamlined geometry of ICE platforms to the complex dual-diameter architecture of fully electric vehicles.
4-Process Robotic Excellence
From projection welding to final robot assembly — every stage is precision-controlled for joint integrity, dimensional accuracy and structural conformance.
Projection Welding
Child parts from stamping undergo projection welding to fuse nuts onto the part. Nuts are precisely positioned and resistance-welded using projection geometry — delivering strong, inspected fastener joints verified for position, weld quality and pull-out strength.
Laser Cutting
Circular steel tube is cut to precise lengths and profiles using laser technology. Clean, accurate edges with minimal heat-affected zone — cut tubes are checked for length accuracy, squareness and edge quality before welding assembly stages.
Robot Child Part Welding
Child parts without nut (from stamping) and with nut (from projection welding) are combined and CO2 robot-welded into sub-assembly units. Each joint is executed to design spec — consistent penetration, verified geometry before final assembly.
Robot Assembly Welding
Laser-cut tubes and sub-assemblies are brought together in the final robotic welding stage. The complete Cross Car Beam is assembled in a single controlled operation — joint positions, weld sequences and dimensions verified against full assembly specification.
Production Market Share
Half-year platform market share — Cross Car Beam (IP) supply to principal customer assembly plant.
Market share figures represent CCB unit supply to Perodua as a proportion of total platform production volume for the reference period.
